So what did I do, what did I make? What did I design and am I legally allowed to show you? You'll find some of it on this page, which will be supplemented by the time.
Below are some of the projects I worked on using 3D software such as Solidworks and Keyshot. More projects can be found in the written Mature portfolios.
Development custom parts - WSI Models /
Final concept Bachelor Thesis - WSI Models /
Polesie Netherlands / Final concept Nature
wall - Healthcare Architecture / Final concept
supporting arm for the disabled - Mitoo / Baby
pouch for Happy Baby Products - ET2C /
Toothbrush for Accesia - ET2C / Design
radiator housing - Ulamo

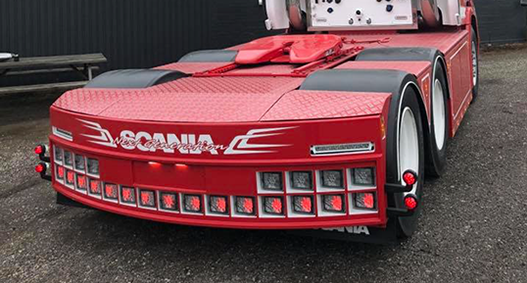

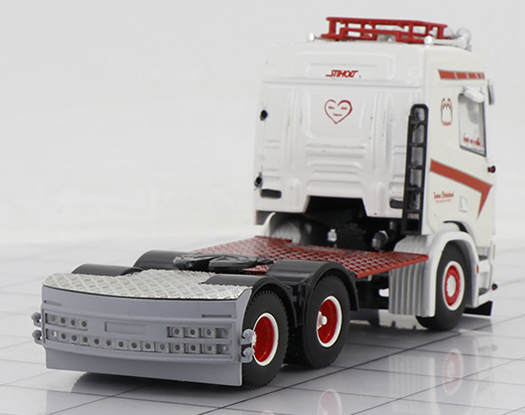

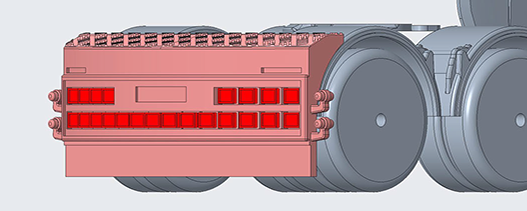

wsi Models - bumper for per andersen
From time to time WSI Models produces scale models for clients which have custom parts on their truck. An example of such order is this one from Per Andersen for which the custom bumper had to be made. As a project manager it is my responsibilty to coordinate the complete development process and make sure the final model looks exactly the same as the real truck.
Normally the 3D files are made by the engineering team but in some occations it occurs these are made by me, If, for example, the design is difficult to explain it is more efficient to make the 3D by myself.
During the Covid-19 pandemic I also worked out some of the custom parts as the engineering team was in lockdown and the urgent orders couldn't wait until the engineers were back in the office.
-crop-u8251.png?crc=1252995)
pre-production sample

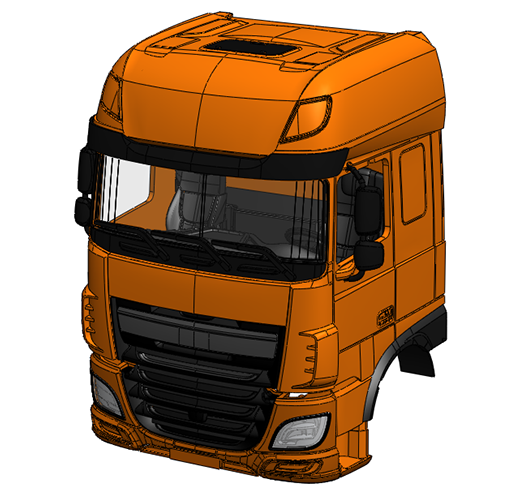

simplified design of the

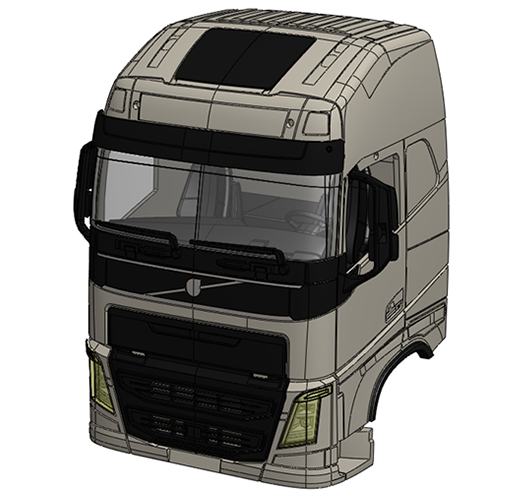

DAF xf and Volvo FH16 Globetrotter

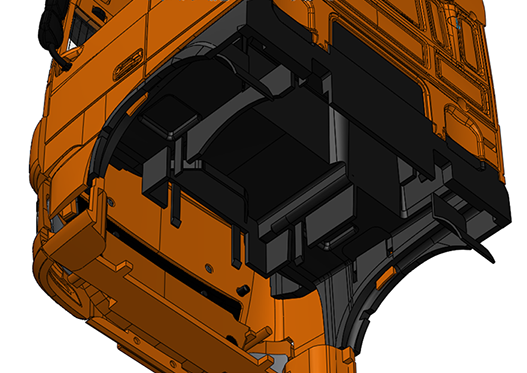

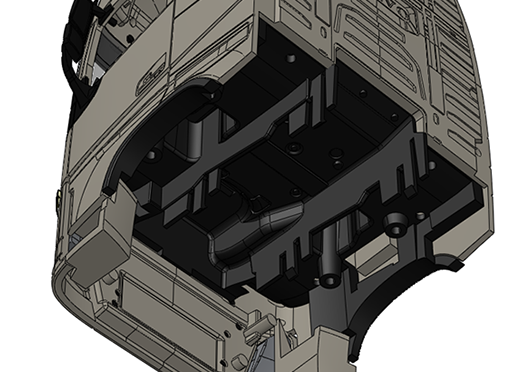

universal system for
cab attachment
wsi models/polesie netherlands - graduation project product proposal
For my graduation project of Industrial and Product Design education I wrote my bachelor thesis at WSI Models. During this project of six months I worked on a toy truck line for WSI Models, in cooperation with toy company Polesie. As these two companies have a different level of detailing solutions had to be found to serve both WSI as Polesie clients.

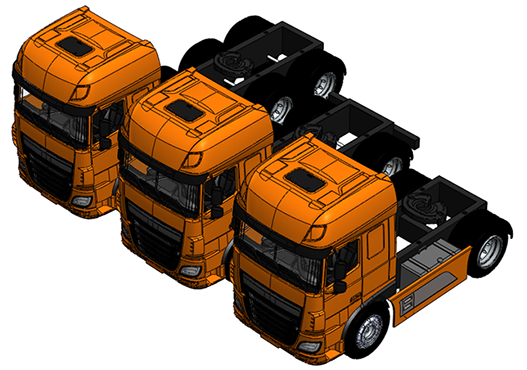

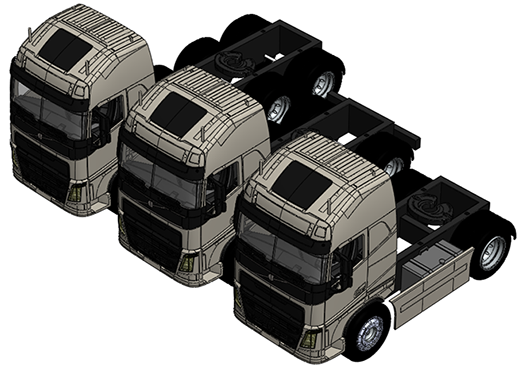

For this project three main concept propopals were worked out in Solidworks, which can be seen here. One of the main goals for the toy line was to examine interchangeable cabs, which can be placed on multiple chassis lengths, and implement this idea in a simple way.
The proposals were presented to the clients and based on multiple analysis, such as production costs, the final concept (concept #2, the orange and grey trucks above) have been chosen. After working out this concept more extensively it was handed over to the production engineers at Polesie.

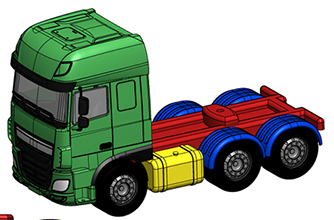

concept 1: cheap production but missing important characteristic details

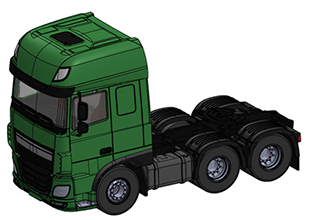

concept 3: implementation of important characteristic details but production costs too high due to amount of parts

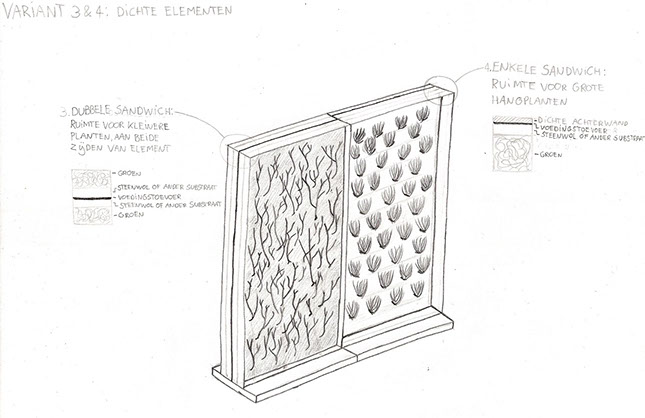

healthcare architecture - Overview multiwall
To finalize the second and final phase of the minor Healthcare Architecture me and my project group converted the results of multiple plant- and healthcare studies into product ideas. The best ones were put into concepts, in which the one above was the best choice based on applicability in housing and office interiors and based on the multifunctionality. This concept is built out of a sheet metal structure and casing and contains a tank which waters the plants from above by use of a water pump.

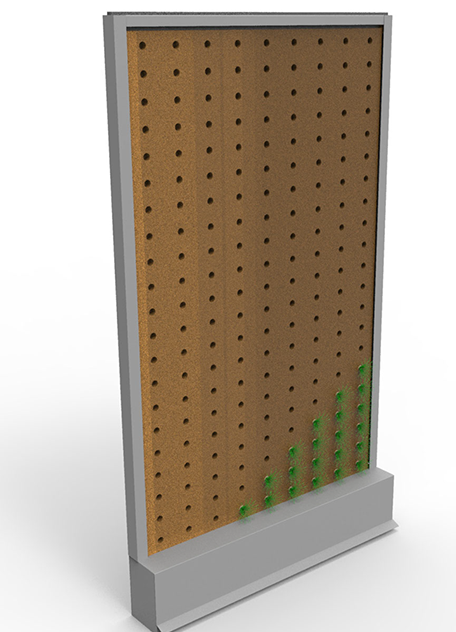

presentation render of final multiwall concept
casing built out of sheet metal

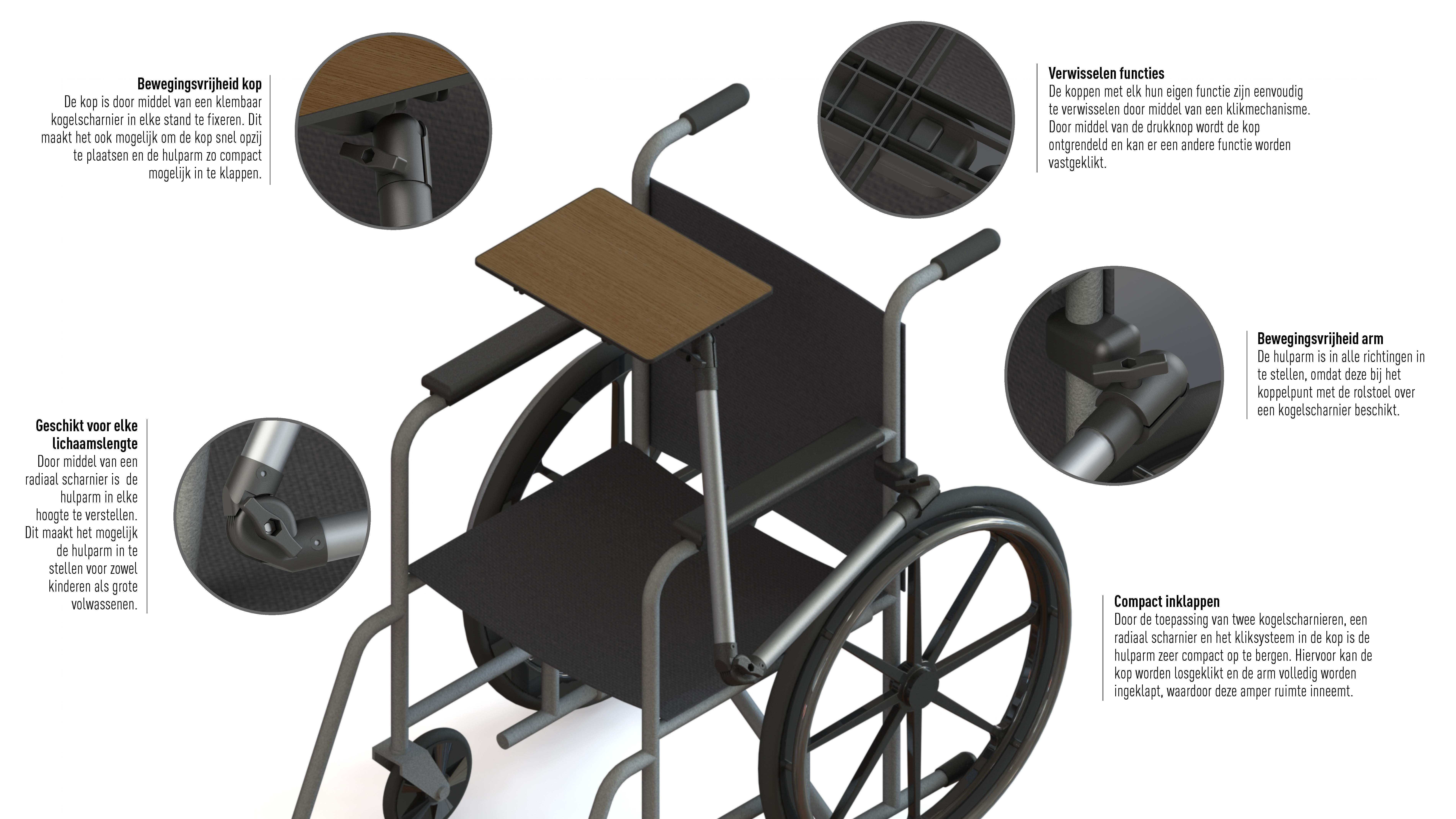

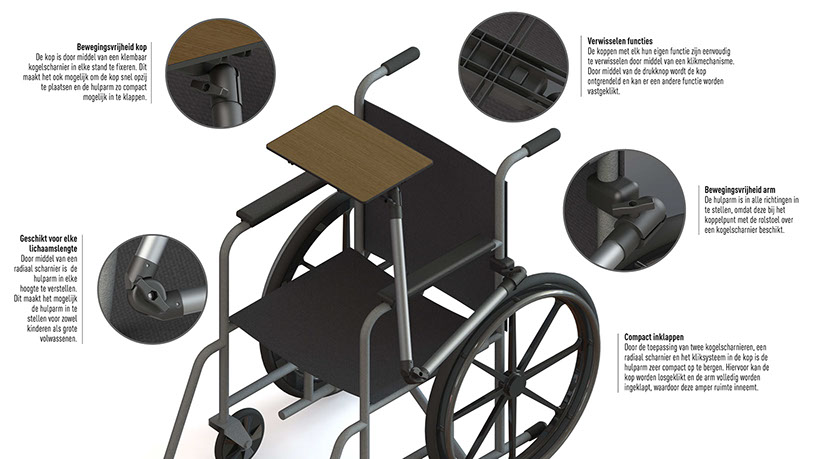

mitoo - supporting arm for the disabled
During my internship at Mitoo I worked on a supporting system for disabled people, which make use of a wheelchair. For this, multiple user-, usage- and market analysis have been done to get to know what this user group needs, how they use similar products and what kind of similar products are available already. Based on the outcomes multiple idea proposals were evaluated and worked out to this final concept, a multifunctial arm with exchangeable heads.

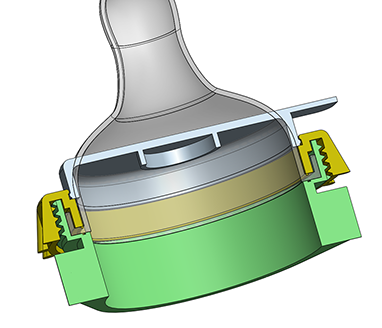

cut through of the baby pouch head with visible spout and cap

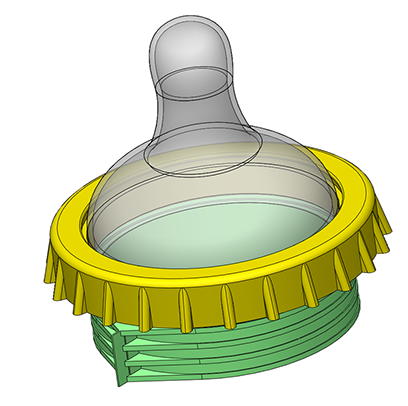

et2c - baby pouch for happy baby products
During my internship at ET2C and thereafter I designed a foldable baby pouch for the company Happy Baby Products. The goal was to come up with a solution to have a baby pouch which could be made smaller when it turned empty. After doing analysis at existing foldable drinking products, a combination between an adult drinking pouch and a classic baby bottle came forward as the best idea.
During the development multiple problems were tackled, such as production capabilities at the current supplier. As this supplier couldn't meet the minimal diameter demanded by the client, I made the decision to reach out to other suppliers. After implementing multiple design and functionality improvements the foldable baby pouch went into production and sales in Asia and Pacific.

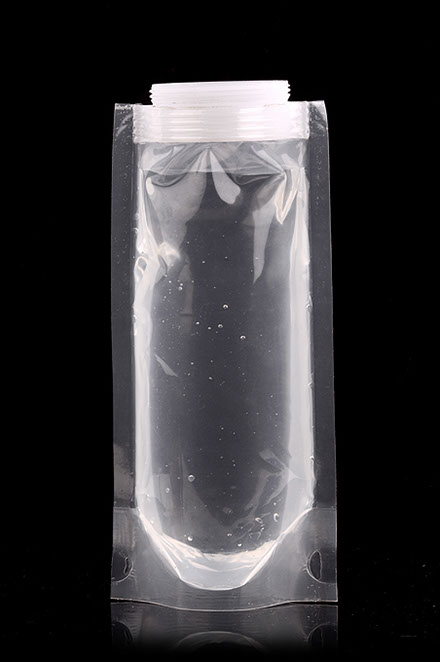

final production sample

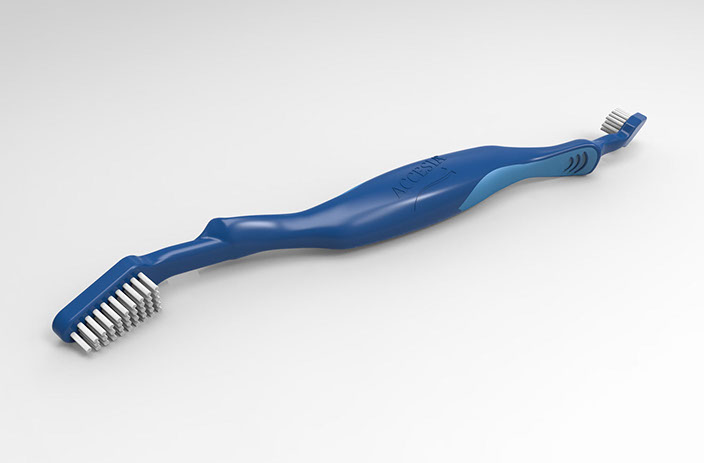

et2c - toothbrush for accesia

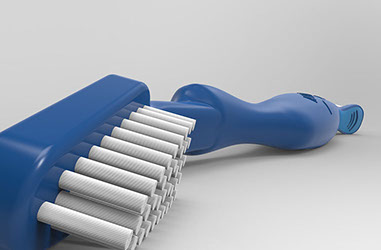

Based on a rough sketch from Accesia sales team I made a production ready 3D proposal of a double toothbrush for animals. Important details are the stable handle and the surfaces made to exert pressure.
pressure surface

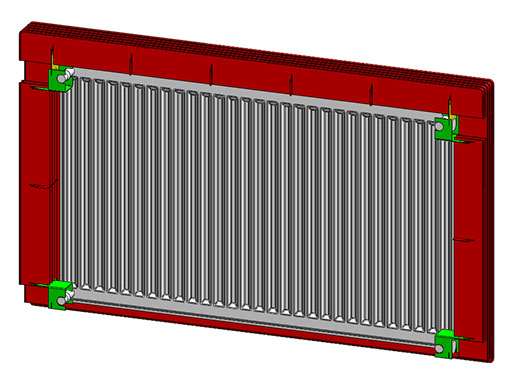

ulamo - design radiator Housing

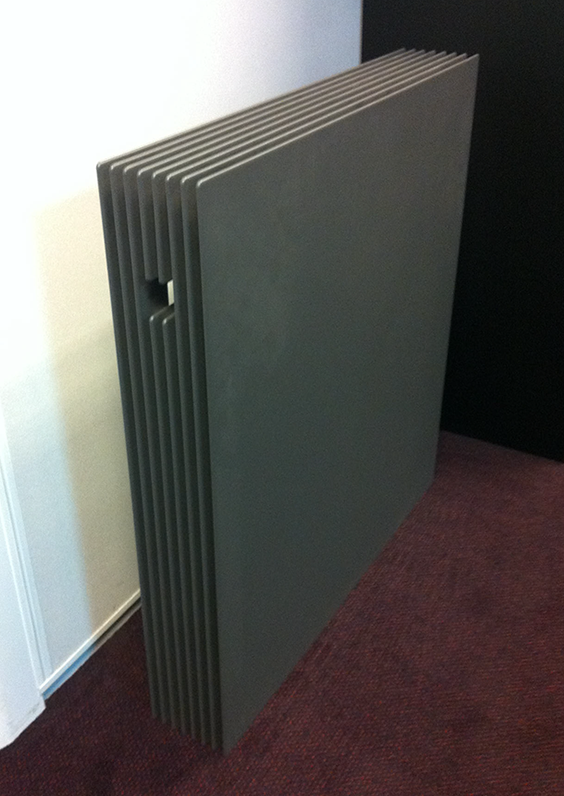

The main assignment during my first internship at Ulamo, a radiator housing producer, I worked out a design housing for existing radiators. The outer design, which gave the impression that the housing consisted of only a few plates behind eachother, was already thought out by the head designer as a concept.
This concept, which was completely different from the current product portfolio, was planned to take into production for the coming year. The main requirement of the concept was to make it fit onto existing radiators, used in Dutch houses. Besides, the housing had to fit different lenghts of radiators and so the solution was to make multiple interchangeable top and side panels.
top panel in different lengths
universal side panels
final design concept
